UDINA Fusion - Connect. Compute. Interact.

Seamlessly unify OT, IT, and UI — from shopfloor to cloud.

From CAP to Fusion: Bridging the Real World

UDINA Fusion is a modular platform designed to extend SAP CAP into industrial and edge environments by integrating low-code connectivity (Node-RED), secure business logic (SAP CAP), and responsive user interfaces. It enables real-time interactions between machines, systems, and people — whether on the edge, hybrid, or in the cloud.

Core Components

CONNECT – Operational Technology (OT)

Low-Code. Event-driven. Flexible.

• Integrates machines, sensors, PLCs using Node-RED
• Supports protocols like OPC UA, MQTT, Modbus
• Enables event-based data flows from the shopfloor
• Local filtering, rule-based processing, and pre-validation

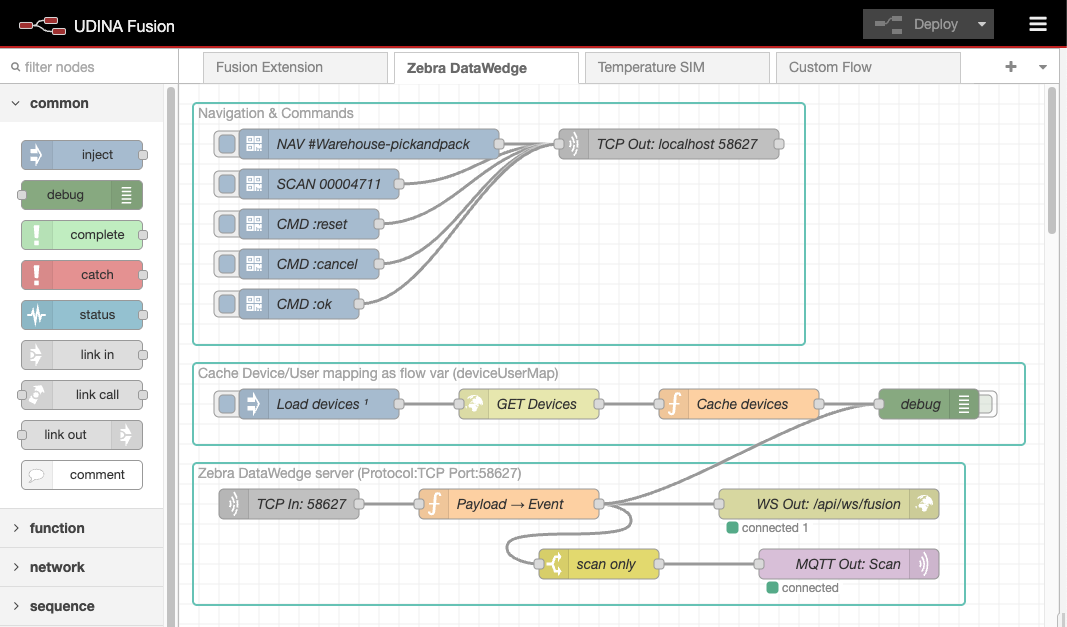

UDINA Fusion Node-RED Low-Code Editor

Example Use Case: A machine emits a status signal → Node-RED evaluates it → forwards structured event to a CAP service

COMPUTE – Information Technology (IT)

Secure. Scalable. Business.

• SAP CAP handles business logic, APIs, and data models
• Ensures secure processing, persistence, and traceability
• Enables hybrid edge-to-cloud data flows
• Orchestrates logic between enterprise systems (e.g. ERP, SAP S/4HANA)

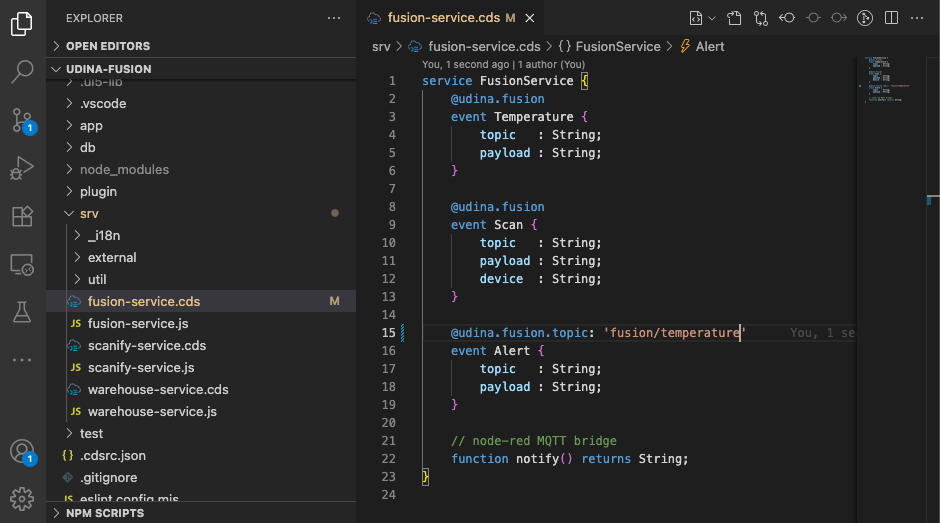

UDINA Fusion CAP MQTT Bridging

Example Use Case: Edge AI detects anomaly → Node-RED triggers CAP service → CAP logs incident, updates system of record

INTERACT – User Interfaces (UI)

Visual. Interactive. Consistent.

• Provides localized dashboards and controls via Node-RED or custom UIs
• Uses CAP APIs for data retrieval and user input processing
• Enables feedback and control directly at the machine
• Operates offline with sync capabilities when reconnected

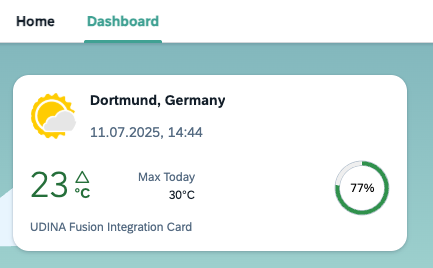

UDINA Fusion UX Integration Card

Example Use Case: Operator selects reason for downtime on a panel → Node-RED UI sends input → CAP logs event into production tracking

System Architecture

UDINA Fusion bridges three domains:

Layer	Technology	Function
OT	Node-RED	Data acquisition, event logic, protocol handling
IT	SAP CAP	Business services, integrations, secure processing
UI	Fiori Launchpad or Node-RED Dashboard or UI5 Integration Card	Local interaction, visualization, operator input

💡 Fully containerized and deployable on Edge, VM, or Cloud infrastructure.

Key Features & Benefits

• Edge-Ready: Enables real-time local processing
• Offline Capable: Continues operation without cloud access
• Microservice Architecture: Easily extensible with Docker & APIs
• Security-First: Keeps sensitive production data on-site
• Low-Code Flexibility: Rapid integration of new sensors or events
• SAP-Integrated: Seamless communication with ERP, MES, or cloud apps

Typical Use Cases

• Predictive Maintenance with edge-based event handling
• Machine → SAP integration via REST/IDoc/API
• Edge-based BDE (Production Data Acquisition) with cloud sync
• Operator panels and dashboards for production & maintenance
• Low-code PoCs before full-scale SAP rollout

Why UDINA Fusion?

For	Reason
Developers	Extend SAP CAP to the edge without compromising structure
OT Teams	Integrate machines using proven low-code tools
Businesses	Gain insight, speed, and control — where it matters most

Ready to Get Started?

UDINA Fusion is available as a modular deployment package implemented as CAP plugin. Contact us for a demo
